SP9100 Switch Panel Power System

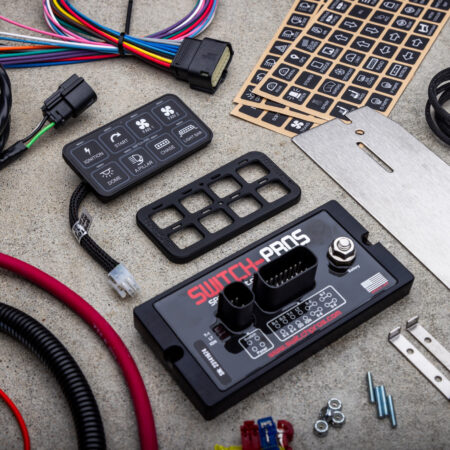

What’s Included?

  • Switch Panel and Power Module

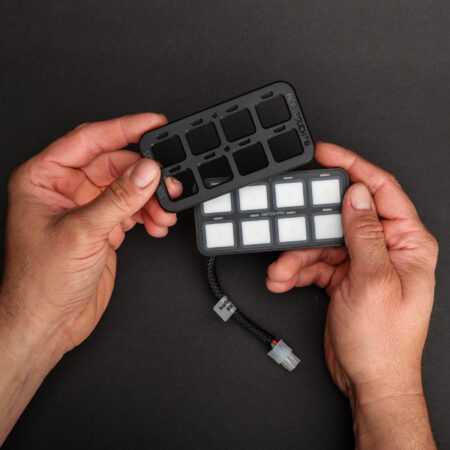

  • RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
  • 11’ of Communication Cable between Switch Panel and Power Module
  • Power Cable with 125A inline fuse

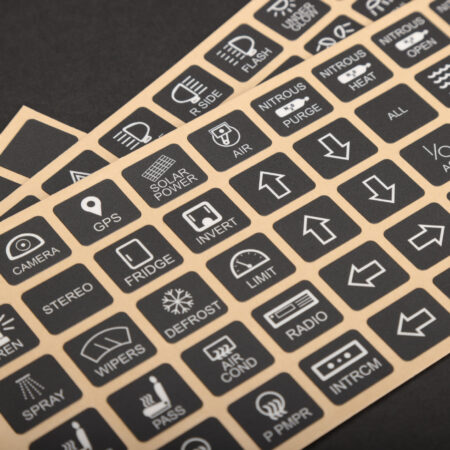

  • 125 User Selectable Legends included (Horizontal orientation)
  • Installation brackets and hardware
  • 16-pin color coded output harness
  • Detailed installation Guide

Programming & Other Features

  • Preset Dimming function WITH MEMORY (100% to 10% brightness)
  • Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Automatic Power-Up upon vehicle start u
  • Time Delay off
  • No bulky relay box
  • Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Low Voltage Disconnect
  • Sleep Mode for minimal power consumption
  • Daisy Chain up to 3 Switch Panels to One Power Module

Proudly made in the USA

SKU: SP9100


  • RGB Backlighting
  • Built-in Bluetooth module for use with free Switch-Pros App
  • Program and operate your panel from any device with access to the iOs or Google Play Store
  • Battery Voltage Readout on App screen
  • Orange LED switch indicators
  • LED Input Status Indicators for easy troubleshooting on power module


  • 125amp capacity with 8 outputs
  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • Adjustable Output Overcurrent Values
  • Switch Panel enclosure measures 4” L x 2” W x .375” H

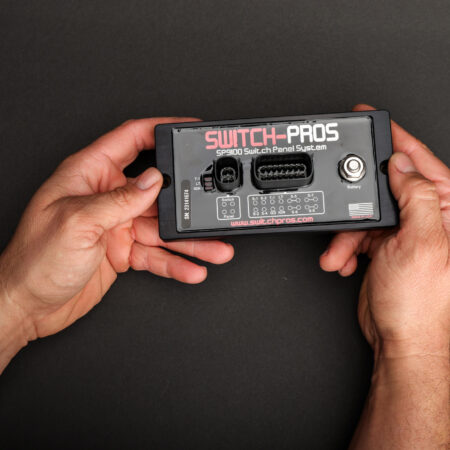

  • Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
  • Power Module Under Hood rating 125°C to -40°C
  • Switch Panel and Power Module Waterproof rating of IP67
